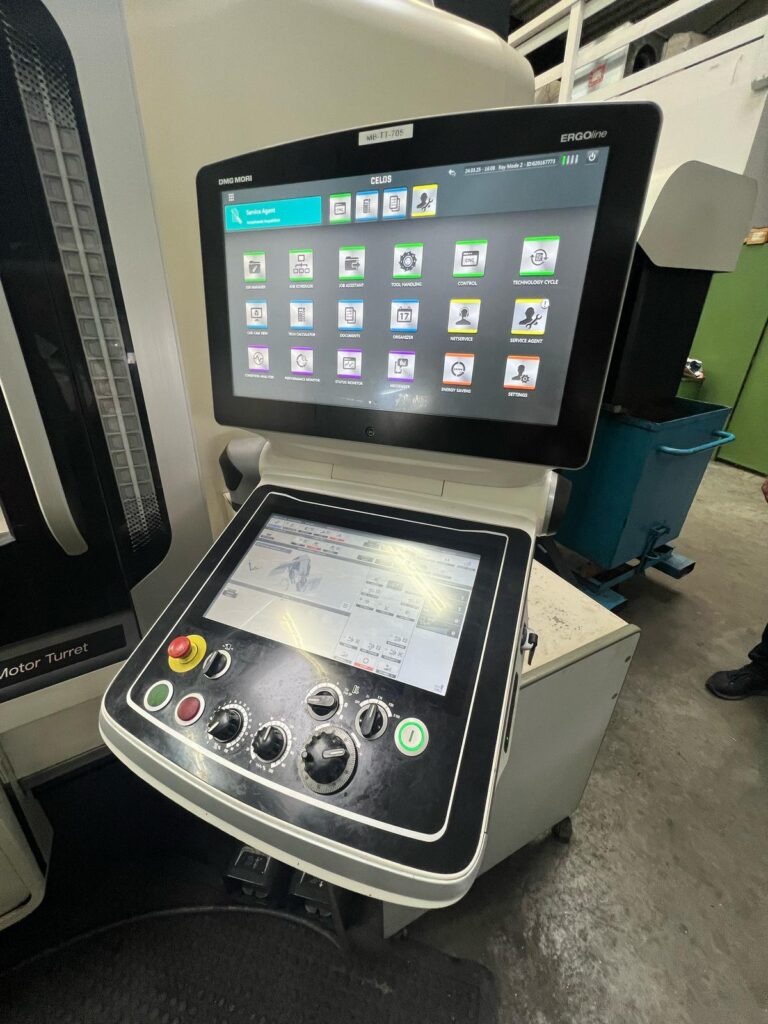

CNC controller: MITSUBISHI M-730UM (ERGOLINE TOUCH “CELOS”)
Capacity
X-axis travel mm: 260
Y-axis travel mm: +/- 50
Z-axis travel mm: 795
B-axis travel mm: 734
Turning length mm: 705
Max. turning diameter mm: ø: 366
Swing over bed mm: ø: 920
Bar work capacity mm: 80

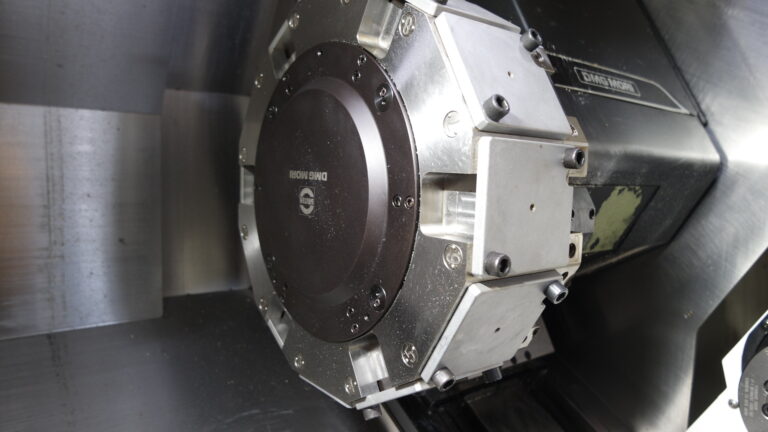

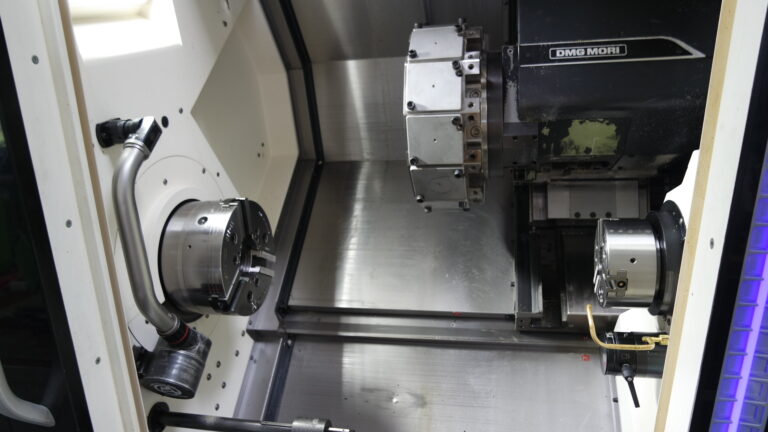

Upper turret
Number of tool slots St .: 12

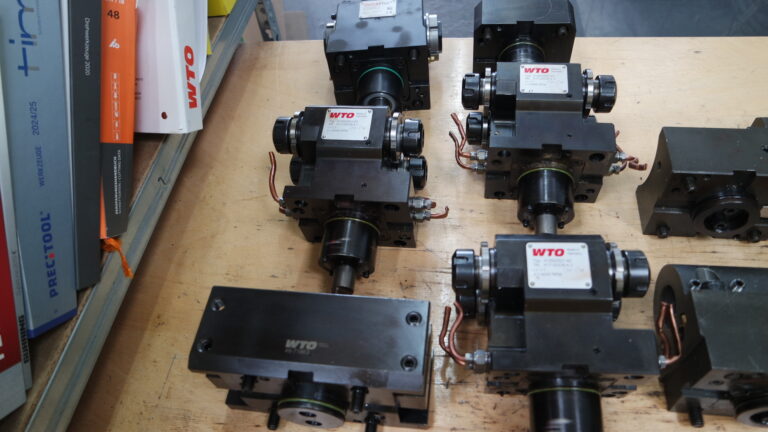

Speed driven tools RPM: 10.000
Main spindle
Speed spindle rpm: 4.000
Drive power spindle kW: 18,5 / 15
Spindle bore mm: 91-111
Manufacturer: KITAGAWA
Spindle nose: JIS-A8

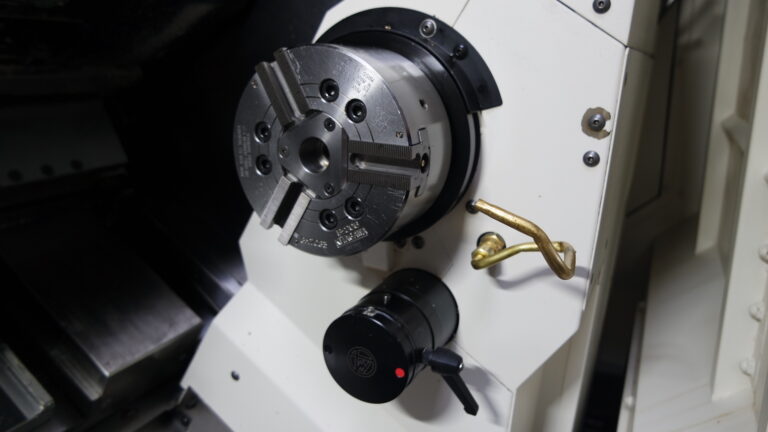

Counter spindle
Speed spindle rpm: 6000
Spindle bore mm: 73
Manufacturer: KITAGAWA
Spindle nose: JIS-A5
Coolant system
Tank capacity liter: 366
Equipment
Chip conveyor
Part catcher
Mist collector
Workarea light
Blowing air outside the spindle
CE conformity
Coolant gun

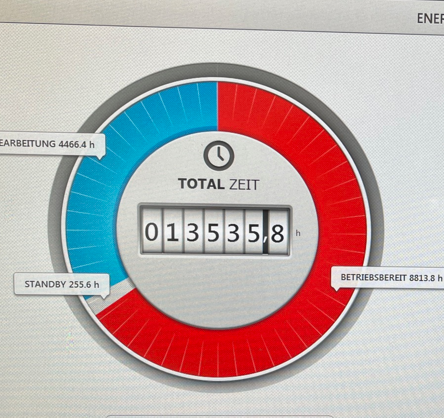

Working time hours
Under power: 13.538
Potencial nominal kVA: 43
Cutting Time: 4.466
Basic machine dimensions / weight
Length mm: 2.106
Width mm: 3.981
Height mm: 2.200
Weight kg: 6.360
